Utility Surveys

Utility

We provide all aspects of underground utility surveying.

  • Detecting underground services
    using Radiodetection equipment and Mala GPR

  • Tracing electric and communication
    cables.

  • Drainage tracing with sonde.

  • All of the above with a Topographical Survey.

    Our Utility Surveyors are trained on specialised courses approved
    by TSA
    (The Survey Association)

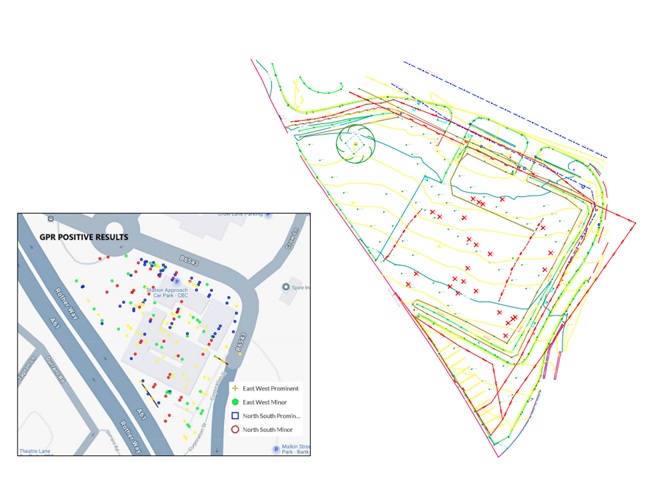

    We can use Utility Surveying in conjunction with Topographical
    Surveys to produce drawings with accurate location of services.
    Depending on the purpose of the job, different levels of accuracy
    can be achieved, in position and depth.

    We use PAS
    128
    compliant utility surveys. There are 4 survey types and
    10 quality levels:

    Survey
    Type

    (Establish
    with client prior to survey)

    Quality
    Level

    Post-processing

    Location
    Accuracy

    Supporting
    Data

    Horizontal
    1)

    Vertical
    2)

    D

    Desktop
    utility records search

    QL-D

    -

    Undefined

    Undefined

    -

    C

    Site
    reconnaissance

    QL-C

    -

    Undefined

    Undefined

    A
    segment of utility whose location is demonstrated by visual
    reference to street furniture, topographical features or evidence
    of previous street works (reinstatement scar).

    B

    Detection
    3)

    QL-B4

    No

    Undefined

    Undefined

    A
    utility segment which is suspected to exist but has not been
    detected and is therefore shown as an assumed route.

    QL-B3

    No

    ±500
    mm

    Undefined
    (No reliable depth measurement possible)

    Horizontal
    location only of the utility detected by one of the geophysical
    techniques used.

    QL-B3P

    Yes

    QL-B2

    No

    ±250
    mm or ±40% of detected depth, whichever is greater

    ±40%
    of detected depth

    Horizontal
    and vertical location of the utility detected by one of the
    geophysical techniques used. 4)

    QL-B2P

    Yes

    QL-B1

    No

    ±150
    mm or ±15% of detected depth, whichever is greater

    ±15%
    of detected depth

    Horizontal
    and vertical location of the utility detected by multiple 5)
    geophysical techniques used.

    QL-B1P

    Yes

    A

    Verification

    QL-A

    -

    ±50
    mm

    ±25
    mm

    Horizontal
    and vertical location of the top and/or bottom of the utility.

    The
    information gathered once the utility has been exposed shall
    include as a minimum, depth from top of utility to a reference
    point installed on the surface level.

    1)
    Horizontal location is to the centreline of the utility.

    2)
    Vertical location is to the top of the utility

    3)
    For detection, it is a requirement that a minimum of GPR and EML
    techniques are used.

    4)
    Electronic depth readings using EML equipment are not normally
    sufficient to achieve a QL-B2 or higher.

    5)
    Some utilities can only be detected by one of the existing
    detection techniques. As a consequence, such utilities cannot be
    classified as a QL-B1.

    The fees are determined by the quality of data that is needed.

    The most common quality levels used are QL-B3 and QL-B2. These
    quality levels offer the most output for the cost of the job.

    We can tailor the needs of the job and we can help you with your
    project in any circumstances.

    For further information do not hesitate to contact
    us
    for a no commitment quote or recommendations.
